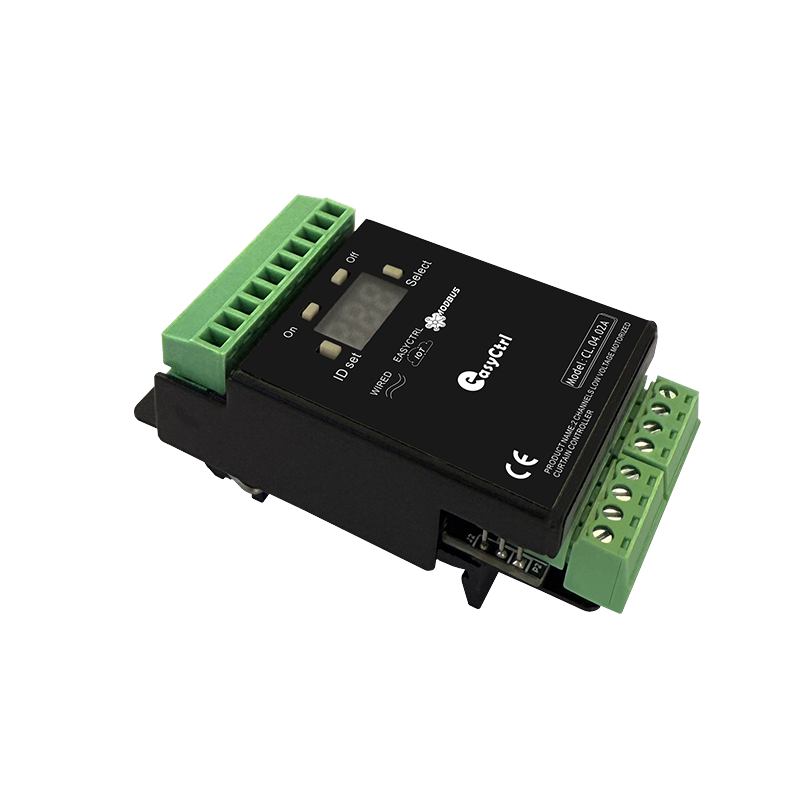

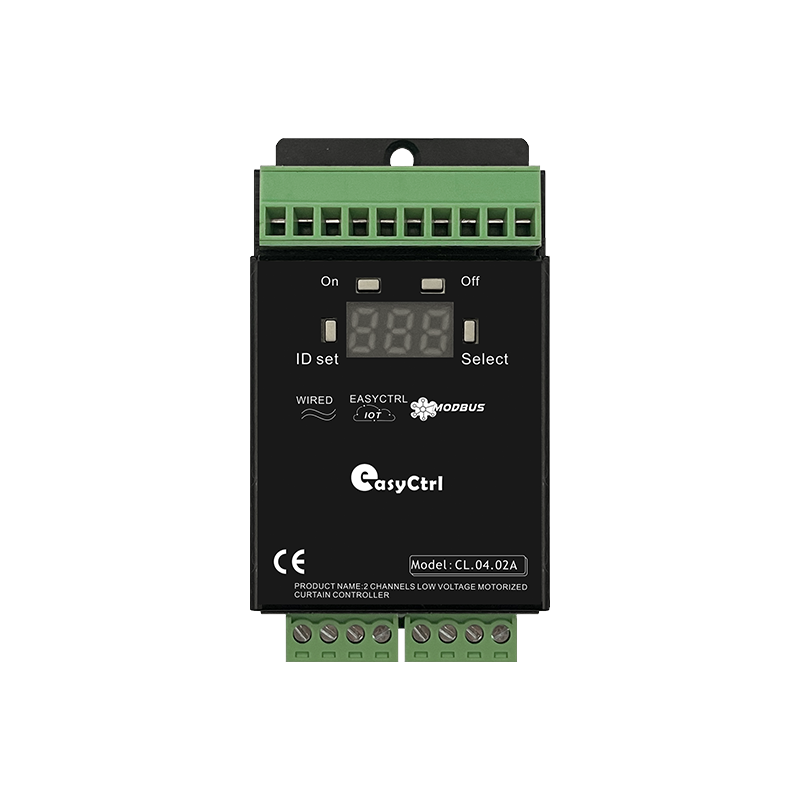

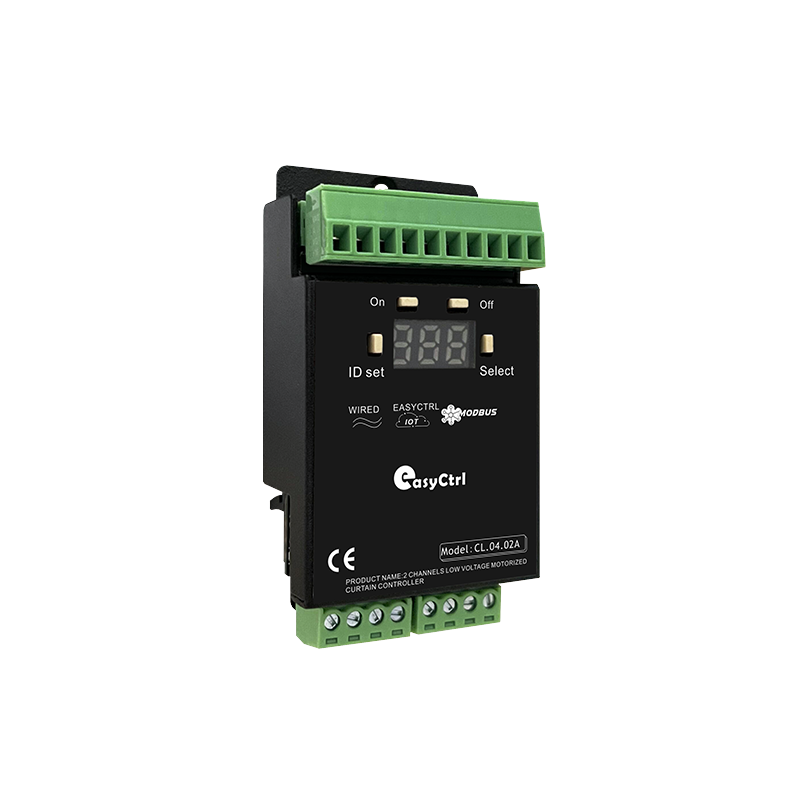

2 CH Curtain Module

Model No:CL.04.02A

The 2 CH Curtain Module serves as a system execution unit, typically installed in a distribution box, DIN rail installation, occupies 2.5P module units. It can also be installed in an 86-type junction box. This module is designed to control dry contact curtains (open/close), compatible with brands such as Dooya, Aoke, and Chuangming.


Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
Rail-mounted installation
Provide curtain interface
Control various types of dry contact curtains
Manual control
Remote control
Local control
Scene control
Simple wiring
Status feedback
Digital tube display status
Online program update
YC-BUS protocol
Product Specifications
Operating Voltage
24VDC±10%
Rated Consumption
≤0.4W
Input Voltage
24VDC±10%
Curtain Circuit
2 sets of curtains
Load Contact
28V
Bus Interface
bus interface*2
Display Interface
4* light touch function key; 3* digital tube LED light
Protection
NONE
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
42 mm*76 mm*32 mm
Net Weight
≤112 g/pcs
Enclosure Material
brushed aluminum shell technology
Installation Method
standard 35mm DIN rail mounting
Dimension
The module uses a compact 2.5P DIN rail mounting structure
Software Presentation
1616relaymodule1280
configuration software1280720
classroom
controlinterface1280
HA
hotel
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
