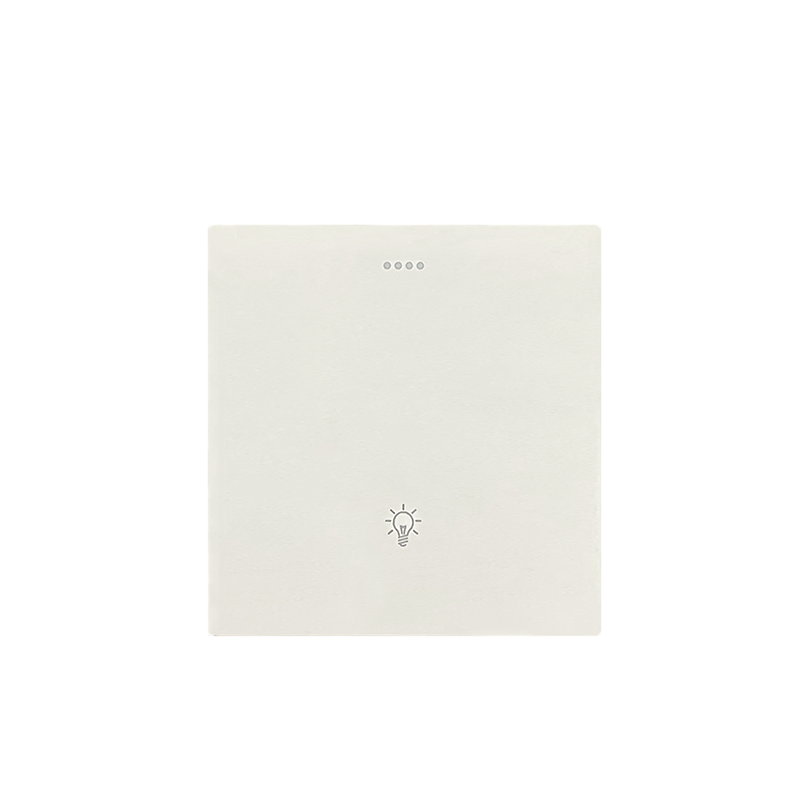

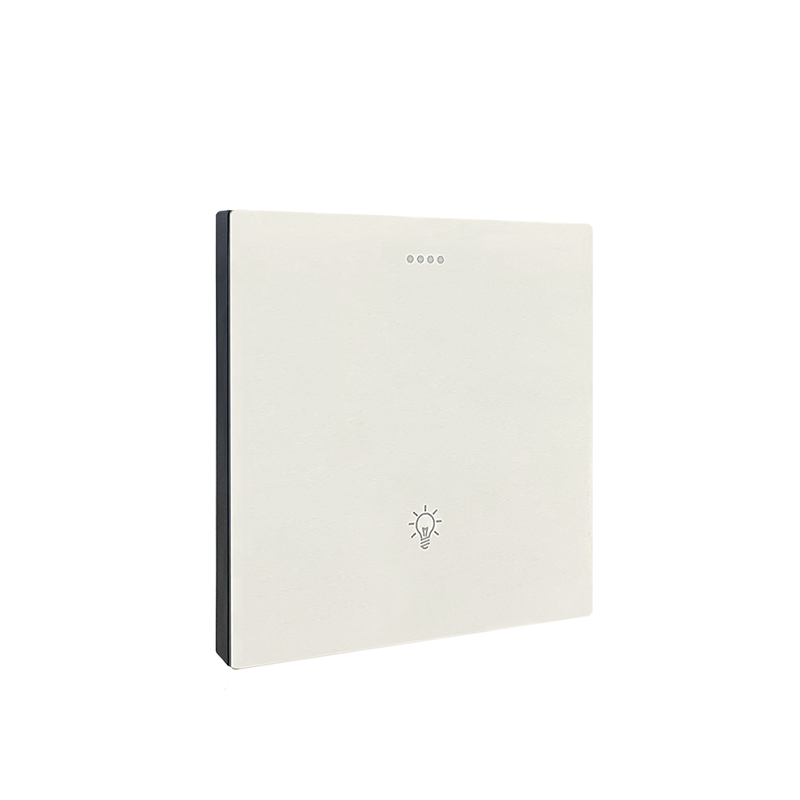

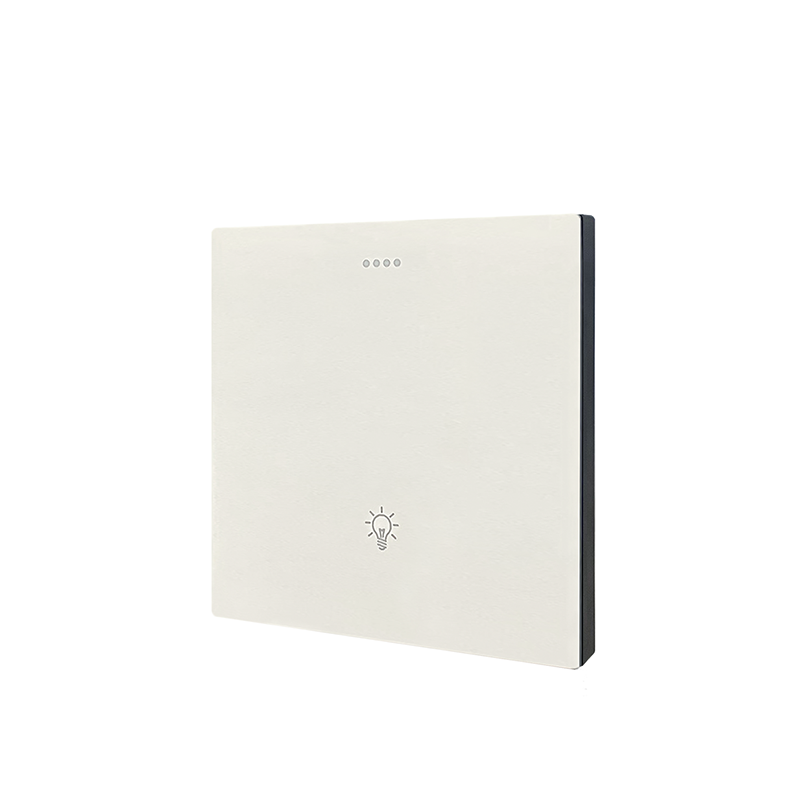

PLC One Key Smart Panel (With Relay)
Model No:PLC.KP.01A
PLC One Key Smart Panel(With Relay), this product is typically installed on the wall to control the light, this is a standard 86 bottom box installation of multi-panel cascade control system, with backlight LED display light and background color LED activation color LED button, can achieve multi-point control, The distributed architecture and PLC networking technology are adopted to improve the stability and reliability of the system.
Contact Us
Wiring Diagram
Product Features
Standard 86-type back box installation
Provide 1 programmable key
Support multiple panels seamless cascade
Manual control
Simple wiring
Icon markings can be engraved
Scene control
A single PLC bus can be equipped with 32 switch panels
Adopts a distributed architecture
PLC networking technology, stable and reliable
Product Specifications
Operating Voltage
AC220V ±10%
Gross Power
3300W
Single Current
5A
Rated Frequency
50/60 Hz
Number Of Keys
one key
Relay Output
one circuit
PLC Communication Distance
300 meter
Networking Mode
PLC networking
Operating Temperature
0℃~45℃
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
86mm*86mm*37mm
Net Weight
≤153gpcs
Installation Method
standard 86 bottom box mounting
Opening Size (L * W)
63mm*66mm，bottom box depth is greater than 40mm
Dimension
The panel adopts a standard 86-type back box for installation
Software Presentation
0820relaymodule1280
classroom
configuration software1280720
controlinterface1280
the underground garage
hotel
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
