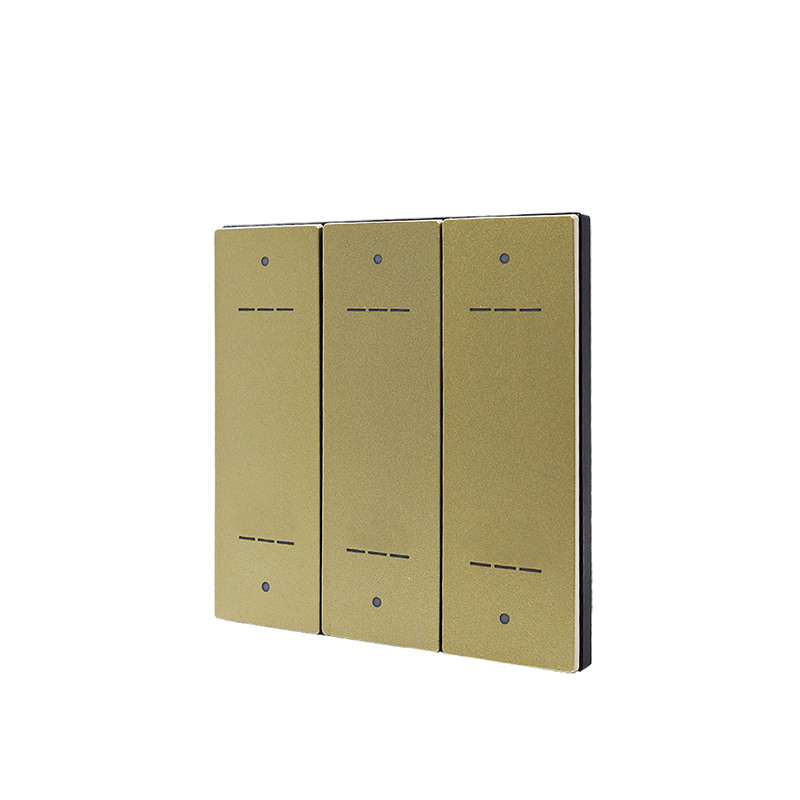

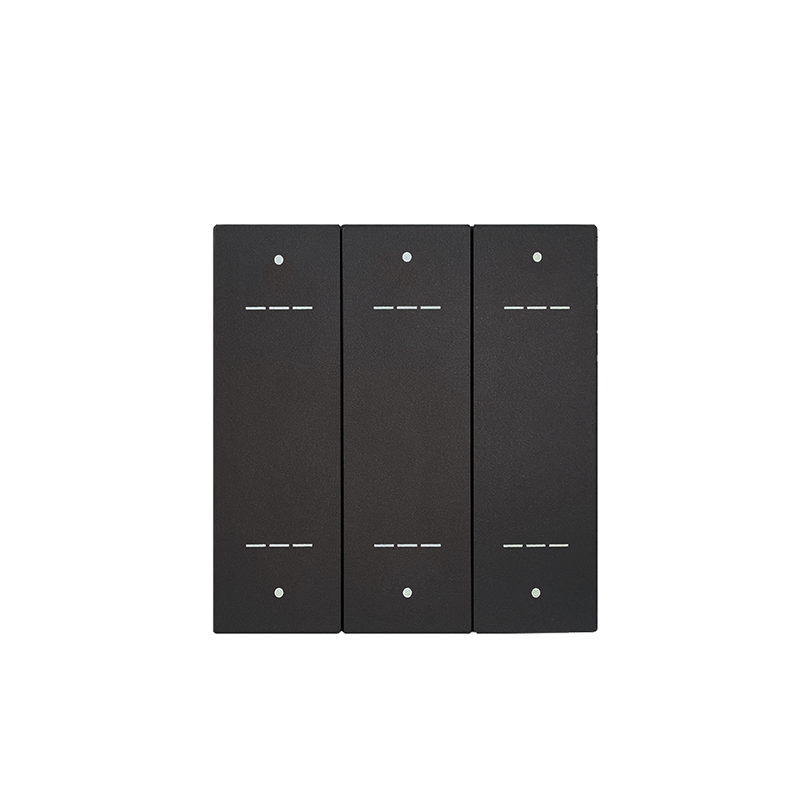

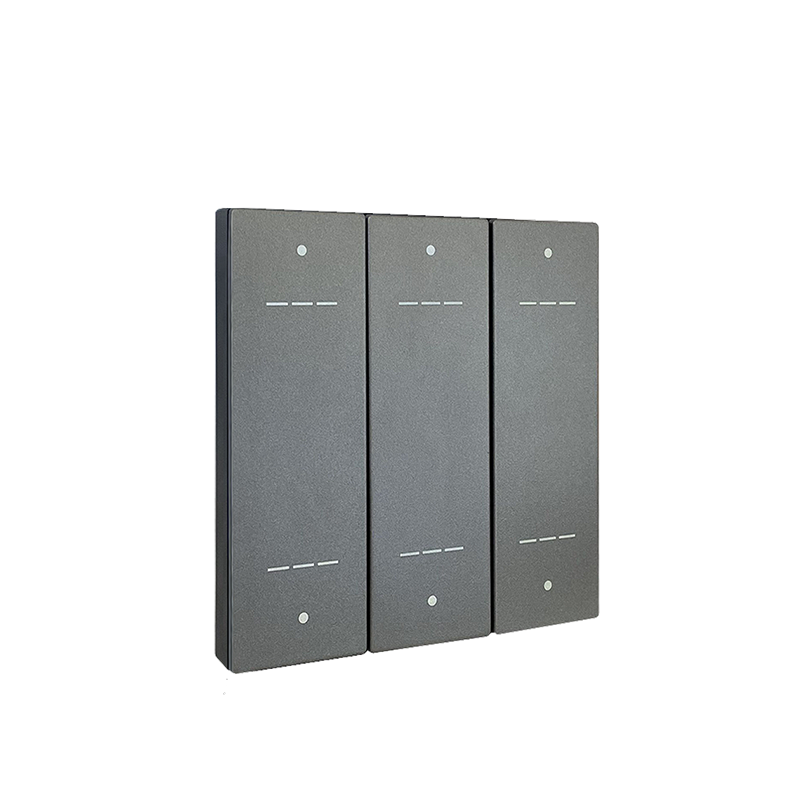

6-Button Smart Switch Panel (C series)

Model No:KP.06C

6-Button Smart Switch Panel , serves as a system control unit , typically installed in the local, to achieve single control or scene control of lighting switch, dimming, curtain opening and closing, music and other devices.

Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
86-type back box installation
Provide 6 programmable keys
Multiple button operation methods
Icon markings can be engraved
Scene control
Simple wiring
Overvoltage protection
Overcurrent protection
Stable and reliable
Online program update
YC-BUS protocol
RS485 protocol
Product Specifications
Operating Voltage
24VDC±5%
Rated Power Consumption
≤0.5W
Proximity Induction
induction interface *1
Number Of Keys
six keys
Key Category
reset touch key
Bus Interface
bus Interface*1
Sensing Interface
sensing interface*3
Installation Method
standard 86 bottom box mounting
Operating Temperature
0℃~45℃
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
86mm*86mm*28mm
Net Weight
≤74gpcs
Enclosure Material
plastic
Opening Size (L * W)
49mm*58mm，bottom box depth is greater than 40mm
Dimension

The panel adopts a standard 86-type back box for installation

Software Presentation
0820relaymodule1280
configuration software1280720
classroom
dalidimmermodule1280
hotel
HA
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
SINGLEAREA2720470
Solution for Single-space lighting control system
Learn more
building720470
Solution for Traditional Building Lighting Retrofit and Upgrade
Learn more
SMARTHOME720470
Solution for Smart Home
Learn more
EXHIBITIONHALL720470
Solution for Exhibition Halls
Learn more
720470NEW
Solution for Office Buildings
Learn more
factory720470
Solution for Large Manufacturing Plant
Learn more
MUSEUMPHOTO720470
Solution for Museum
Learn more
Hotel intelligent dimming system
Solution for Hotel Public Areas
Learn more
User Manual(KP.02/04/06C)
English 中文
