LingLan ShuiXiang Interational Spa Smart Lighting Control System

/upload/images/article/20250718/17528200286755792.png

Project information

Control Equipment

Dimmable Lights: ceiling light strips

Non-dimmable Lights: Ceiling downlights and spotlights

Control Areas

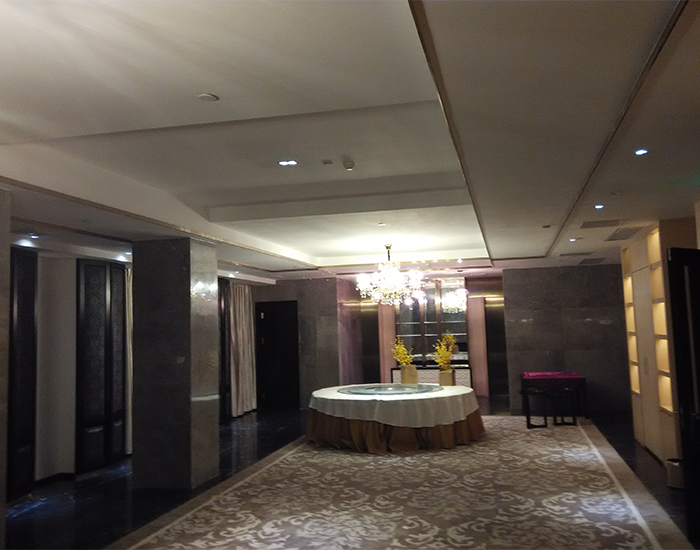

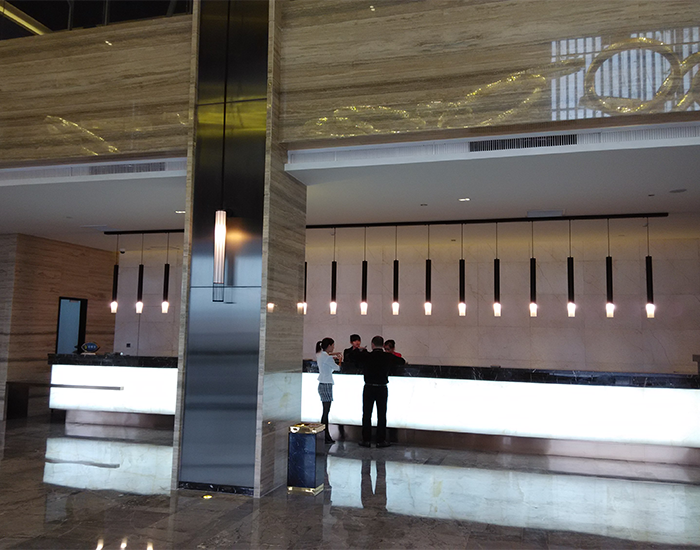

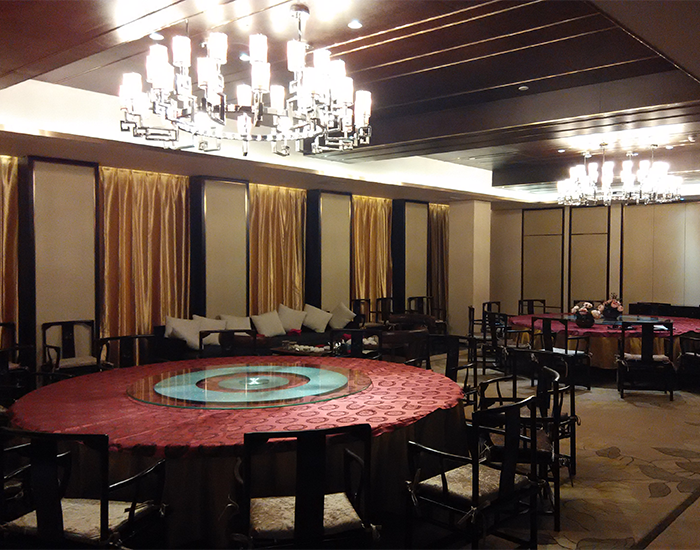

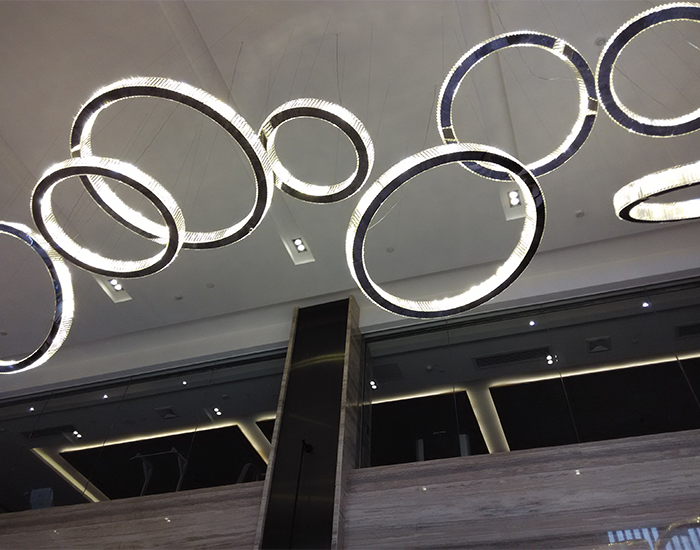

The public areas of the LingLan ShuiXiang Interational Spa.

Control Requirements

1.Perform switch control on some of the club's lighting circuits.

2.Perform 0-10V dimming control on some of the club's lighting circuits.

3.Enable zoned lighting control.

4.Enable timed control and scene control.

5.Centralized control via PC and pad.

Control Solution

System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 0-10V smart dimming module, intelligent relay switch module, bus coupler, and 4-inch smart touch panel.

Control Methods

A bus-type intelligent lighting control system enables localized control via touch panels (customizable interfaces), alongside centralized management through a PC workstation and a pad (customizable interfaces).

Performance Outcome

The LingLan ShuiXiang Interational Spa's switching circuits and 0-10V dimming circuits achieve intelligent operation with precision and efficiency in individual circuit control, scene programming, and scheduling. The 0-10V dimming delivers exceptionally smooth transitions, while the centralized control interface ensures operational simplicity and significantly enhanced management efficiency.

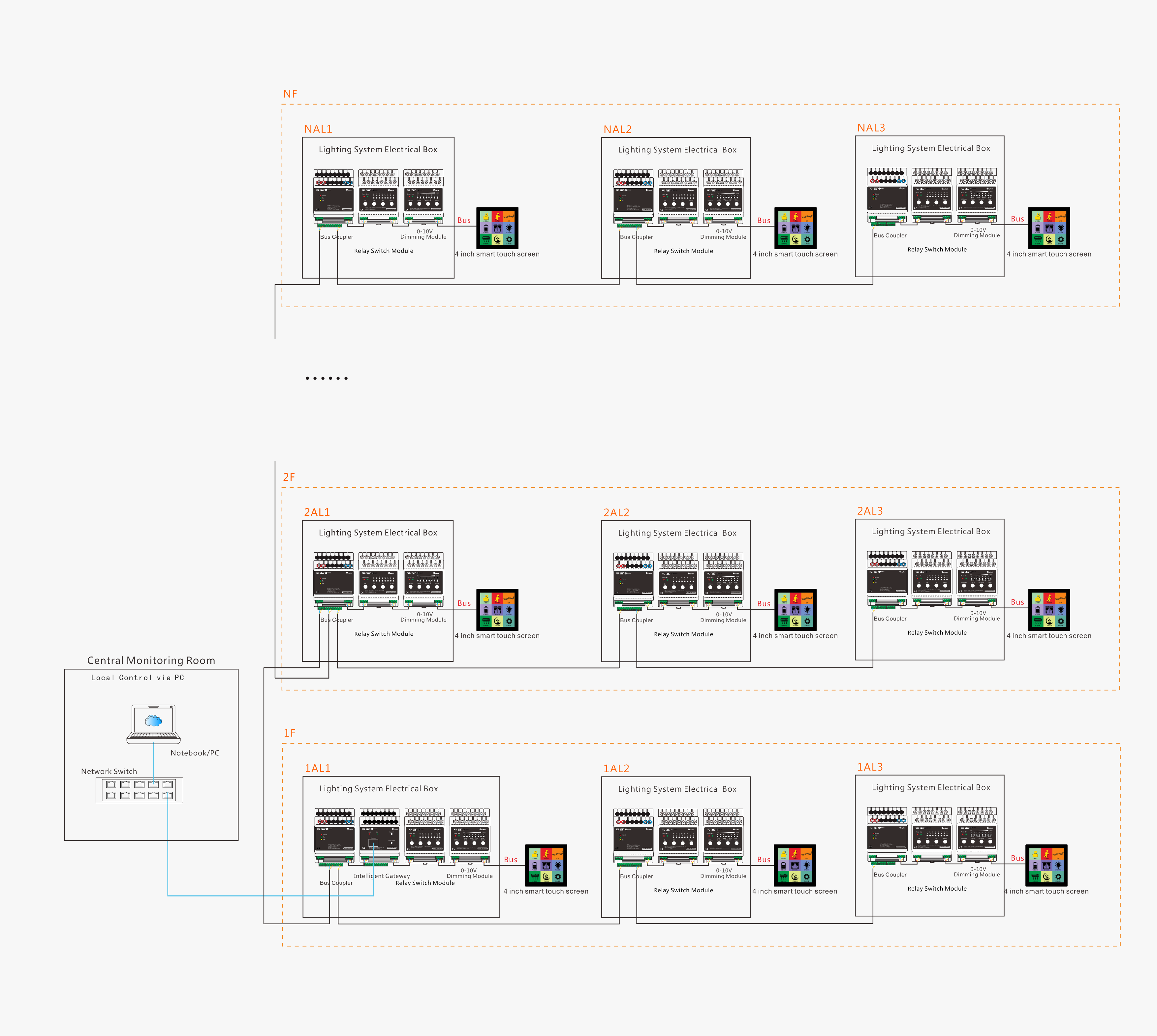

System Architecture Diagram
