Jinan University Panyu Campus library Smart Lighting Control System

Project case for Smart Lighting Control System

Home Projects Comprehensive Project

/upload/images/article/20250716/17526565264785459.png

Project information

Control Equipment

Non-dimmable Lights: lighting fixtures in each area

Control Areas

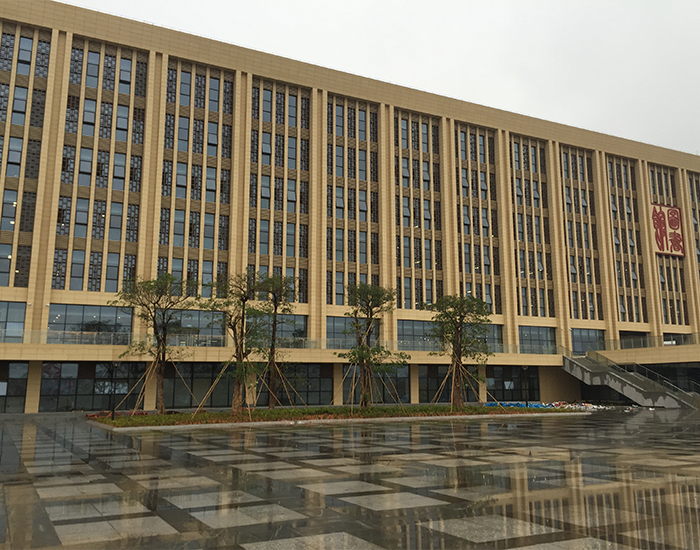

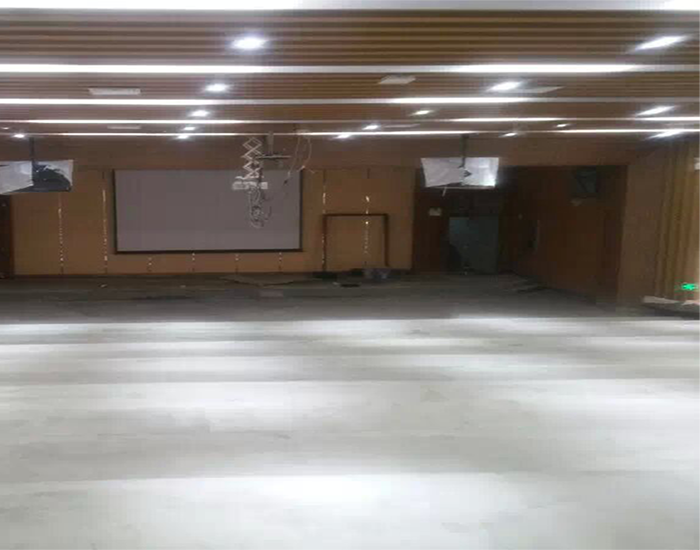

The public areas of the Jinan University Panyu Campus library.

Control Requirements

1.Perform switch control on some of the library's lighting circuits.

2.Enable zoned lighting control.

3.Enable timed control and scene control.

4.Centralized control via PC and pad.

Control Solution

System products

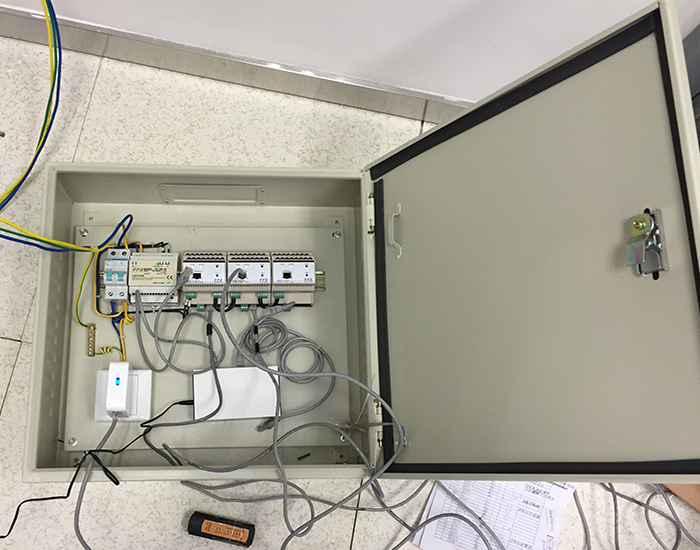

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 4ch 16A relay switch module, 8ch 16A relay switch module, bus coupler, and 6 button smart panel.

Control Methods

A bus-type intelligent lighting control system enables localized control via 6-button smart switch panels ,alongside centralized management through a PC workstation(customizable interfaces).

Performance Outcome

The system includes gateway controllers, smart switch modules, bus couplers, and 6-button smart panels. The library's switching circuits achieve intelligent operation with precision and efficiency in individual circuit control, scene programming, and scheduling. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the Jinan University Panyu Campus library's lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste.

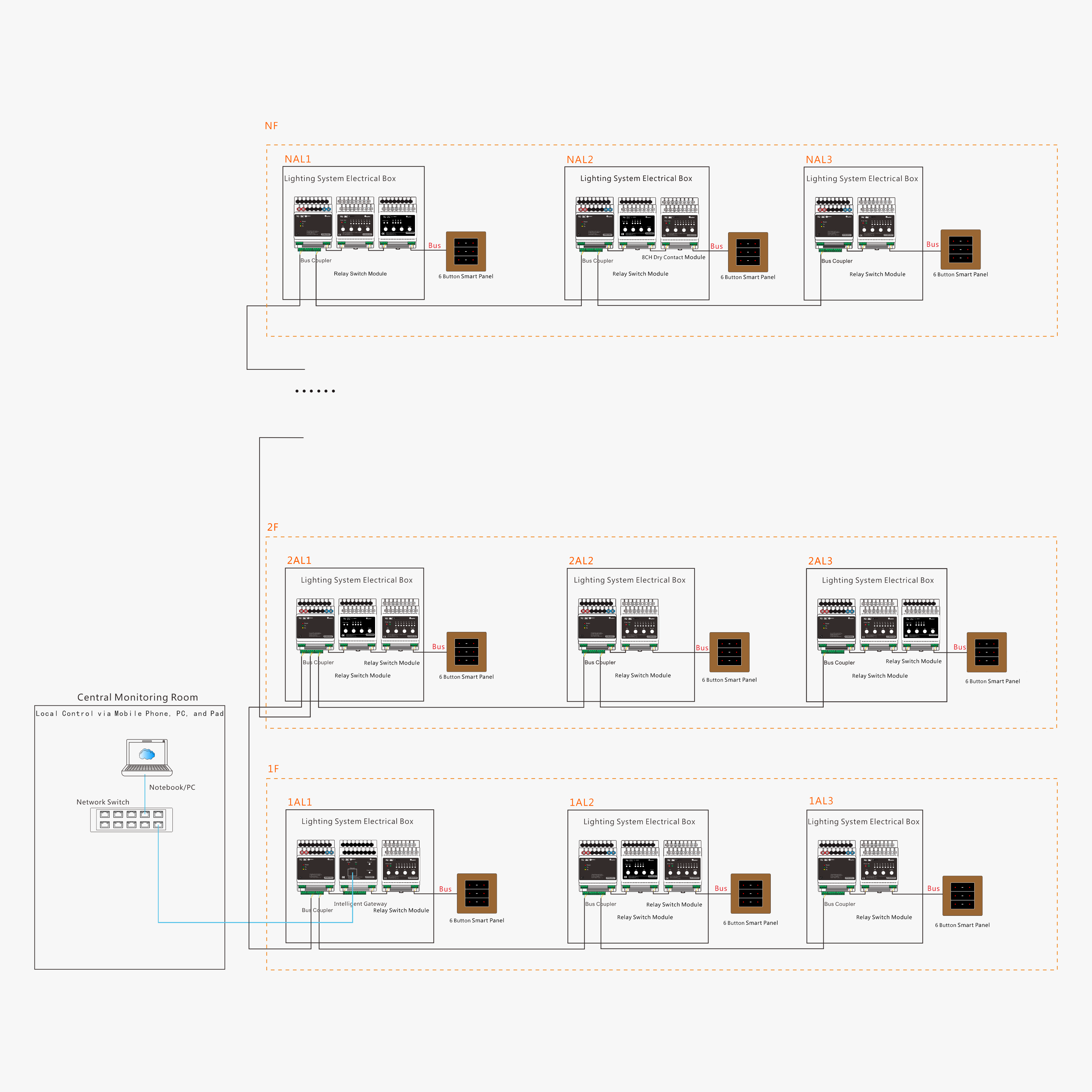

System Architecture Diagram
