Chongqing Golden Lakeside Leisure Club Smart Lighting Control System

Project case for Smart Lighting Control System

Home Projects Comprehensive Project

/upload/images/article/20250715/17525720207347723.png

Project information

Control Equipment

Dimmable Lights: ceiling light strips

Non-dimmable Lights: Ceiling downlights and spotlights

Control Areas

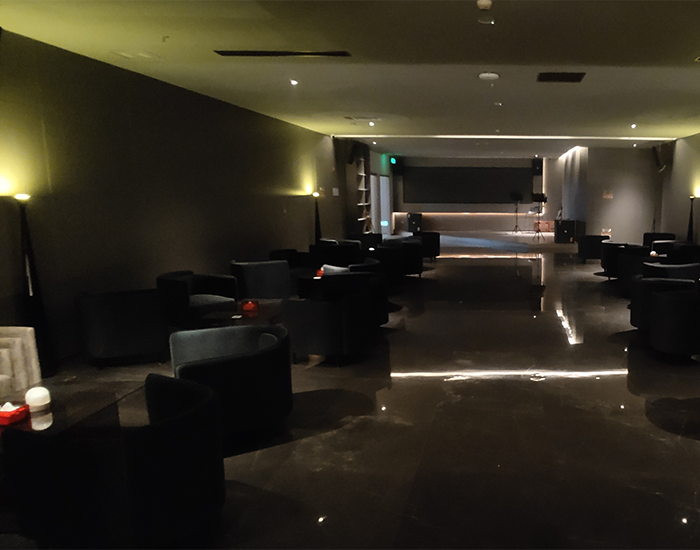

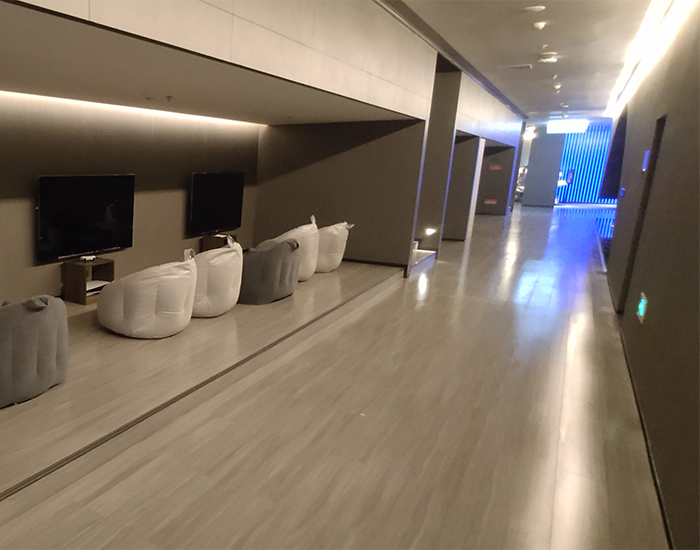

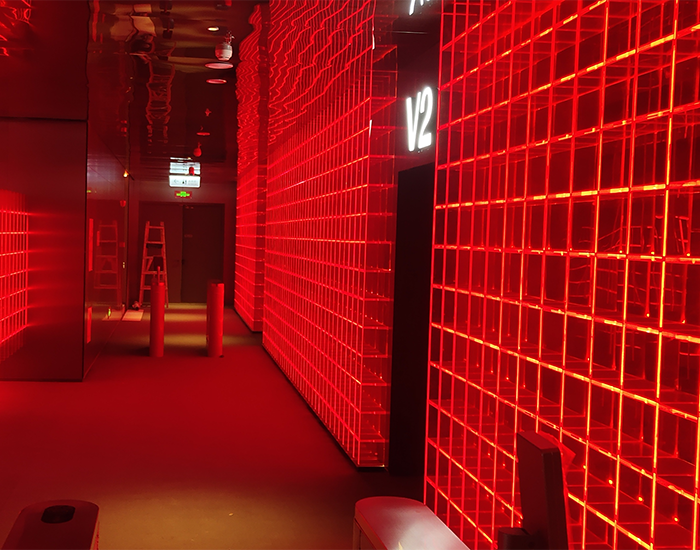

The public areas of the Chongqing Golden Lakeside Leisure Club.

Control Requirements

1.Perform switch control on some of the club's lighting circuits;

2.Perform DALI dimming control on some of the club's lighting circuits;

3.Enable zoned lighting control;

4.Enable timed control and scene control;

5.Centralized control via PC and pad.

Control Solution

System products

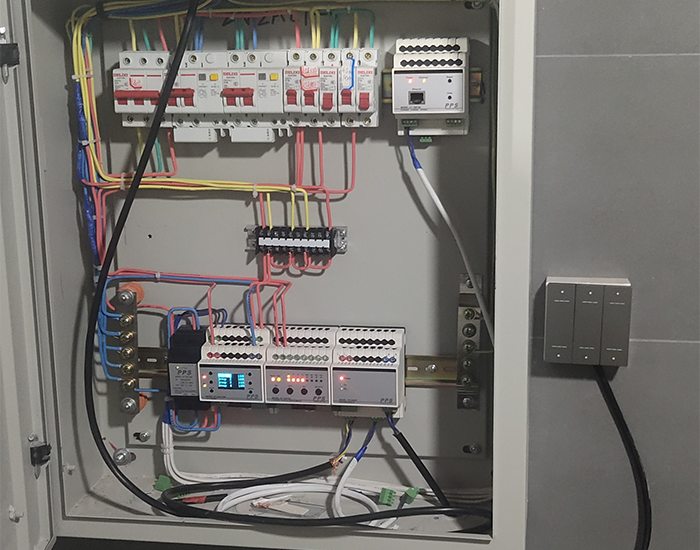

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, intelligent relay switch module, bus coupler, DALI dimming module, and intelligent 6 buttons smart switch.

Control Methods

A bus-type intelligent lighting control system enables localized control via 6-button smart switch panels ,alongside centralized management through a PC workstation(customizable interfaces).

Performance Outcome

The system includes gateway controllers, smart switch modules, dail dimming modules, bus couplers, and 6-button smart panels. The club's switching circuits and dali dimming circuits achieve intelligent operation with precision and efficiency in individual circuit control, scene programming, and scheduling. The dail dimming delivers exceptionally smooth transitions, while the centralized control interface ensures operational simplicity and significantly enhanced management efficiency.

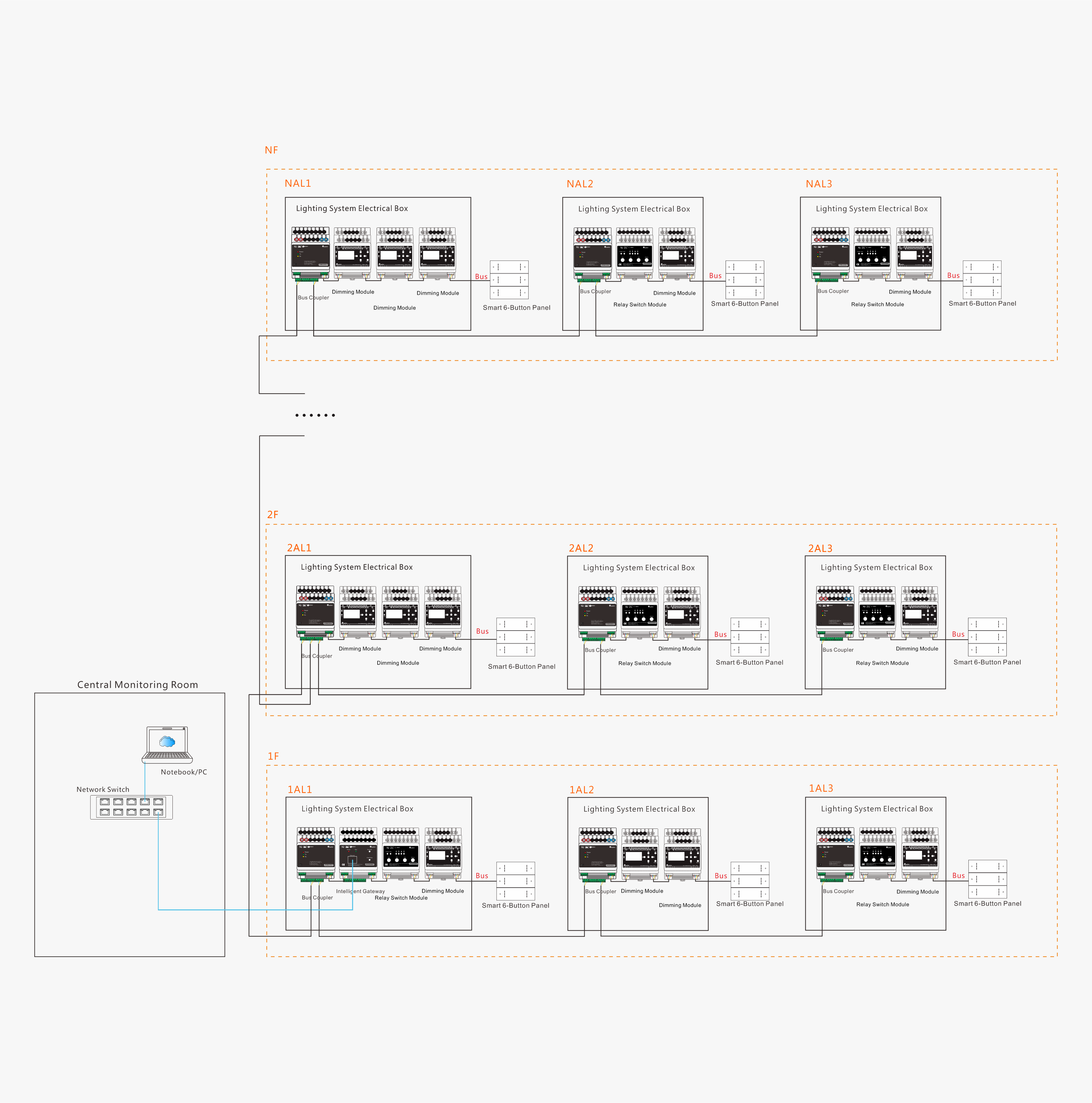

System Architecture Diagram

chongqing golden lakeside-System Architecture Diagram.png
