China Energy Exhibition Hall Intelligent Lighting System Project

/upload/images/article/20250717/17527196336647440.png

Project information

Control Equipment

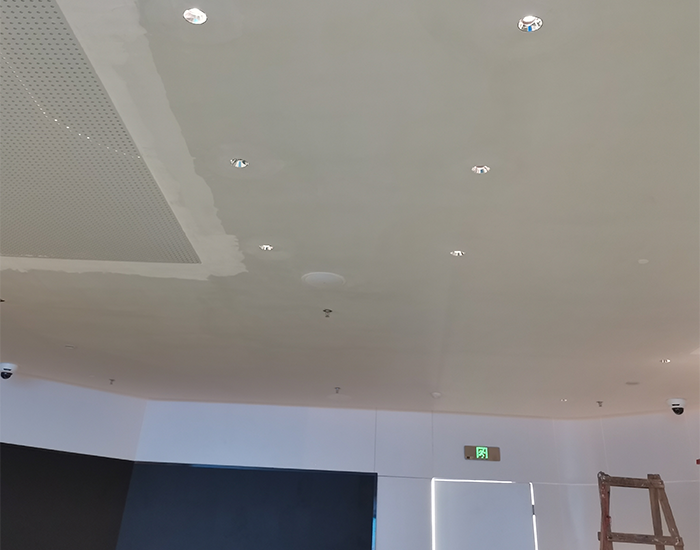

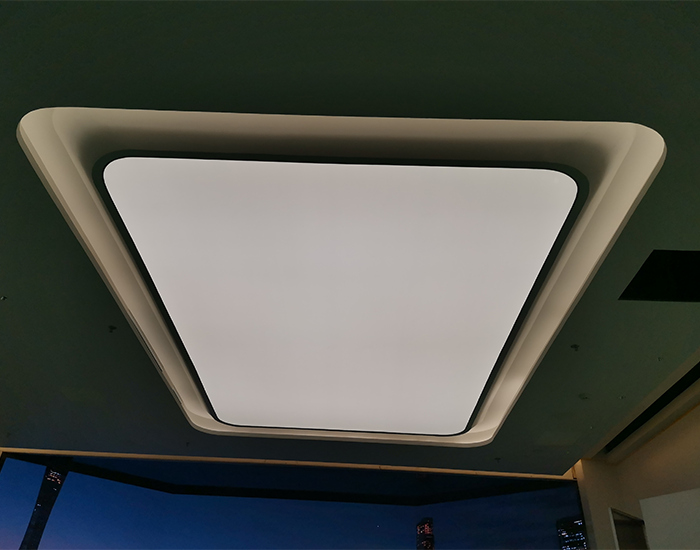

Dimmable Lights: Ceiling light film, recessed light strips

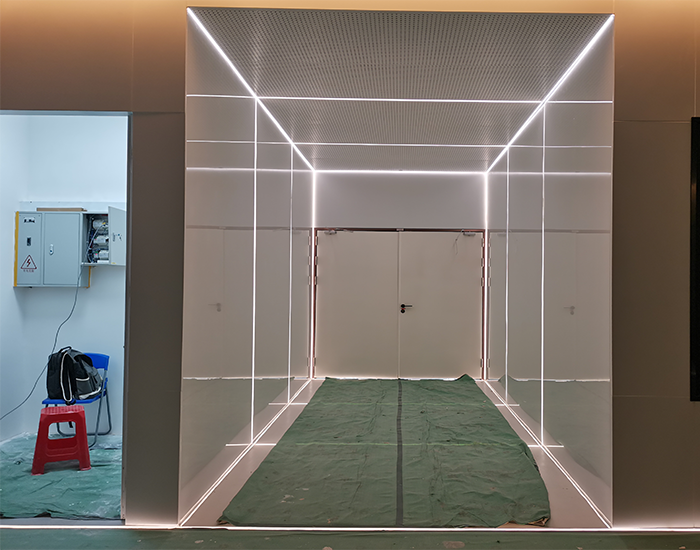

Tunable Lights(Dimmable and Adjustable Color Temperature): Wall linear lights, floor linear lights, celling downlights, floor heating-integrated lights, perimeter celling light strips

Control Areas

Different exhibition areas in the exhibition hall

Control Requirements

1.Perform on/off control of some exhibition hall lighting circuits.

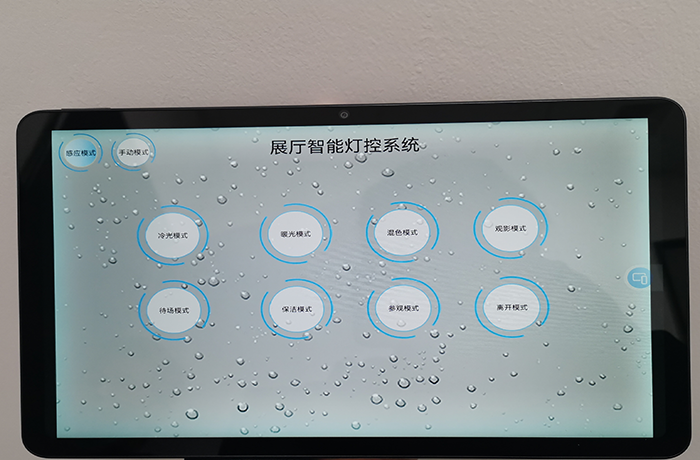

2.The various lighting fixtures in the exhibition hall can be configured into different scene modes according to lighting needs, offering visitors an enhanced experience.

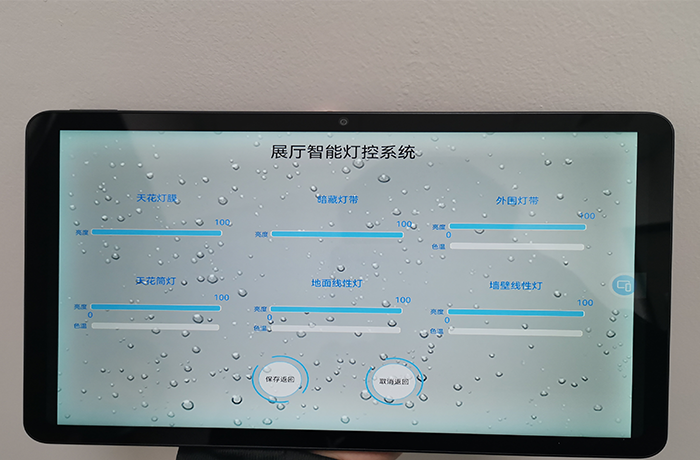

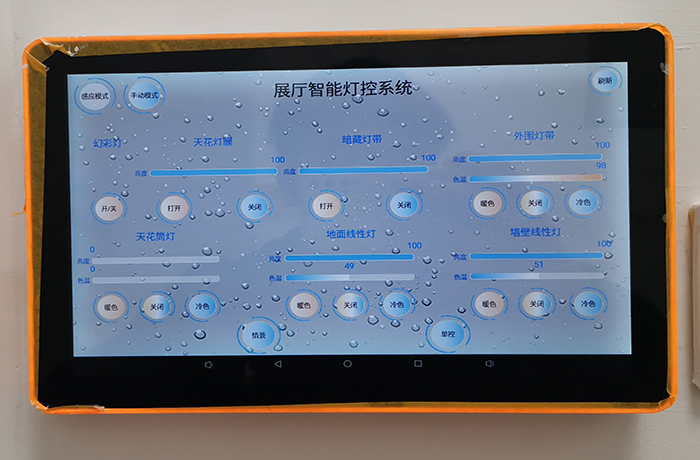

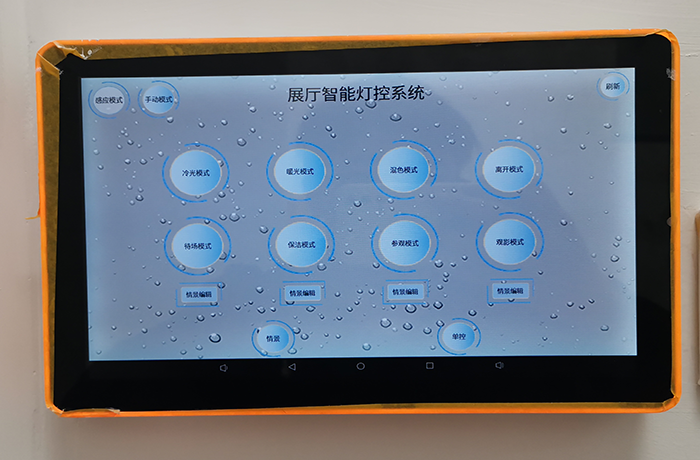

3.Each area is equipped with smart touch panels for both individual circuit control and scene-based lighting control.

4.Enable zoned lighting control.

5.Enable timed control and scene control.

6.Centralized control via PC and pad.

Control Solution

System products

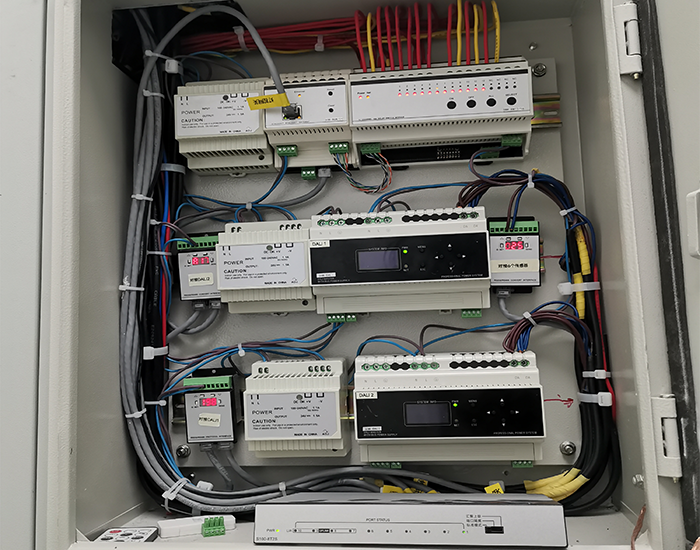

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 12 CH 16A smart switch module, Bus coupler, DALI dimming module, and smart touch screen.

Control Methods

A bus-type intelligent lighting control system enables localized control via smart touch screen, alongside centralized management through a PC workstation.

Performance Outcome

The smart touch screens and pads are used to achieve on/off control, dimming control,scheduled control, and scene control of lighting circuits across different areas of the exhibition hall. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the exhibition hall’s lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste.

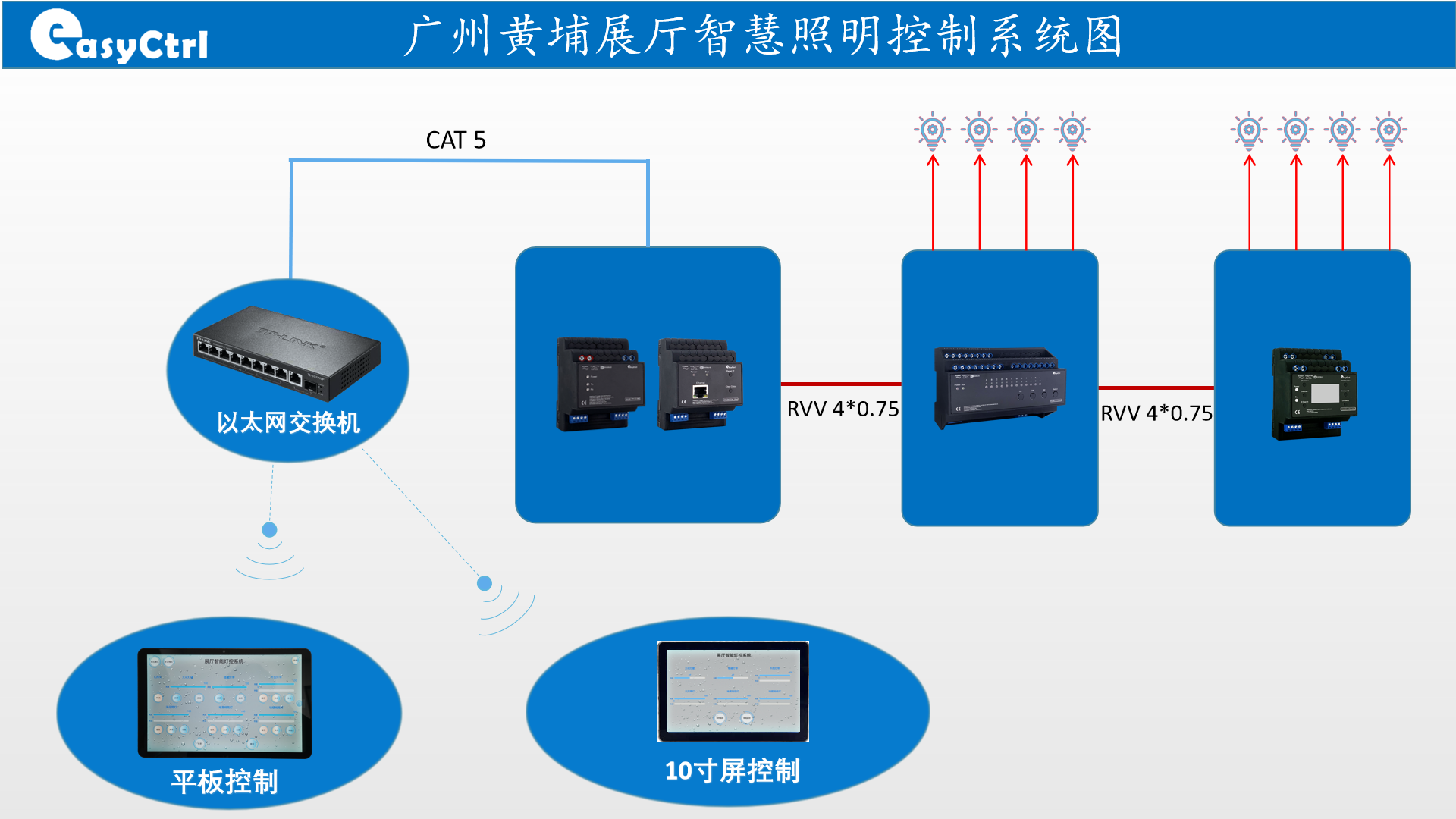

System Architecture Diagram
