Hunan Chenzhou Youth Gas Station Smart Lighting System Project

/upload/images/article/20250626/17509307901596076.jpg

Project information

Control Equipment

Dimmable Lights: Convenience store ceiling LED lights;

Non-dimmable Lights: Gas station logo lights, convenience store logo lights, and exterior LED light boxes for buildings.

Control Areas

The different sections of the gas station and convenience store.

Control Requirements

1.Enable switching and dimming control of lighting circuits in the public areas of gas stations and convenience stores;

2.Multiple 6-button smart switch panels are configured in each area to support individual circuit switching, dimming control, and scene-based lighting control;

3.Achieve zoned lighting control functionality;

4.Support timed control and scene-based control;

5.Enable centralized control via a 7-inch smart touch screen.

Control Solution

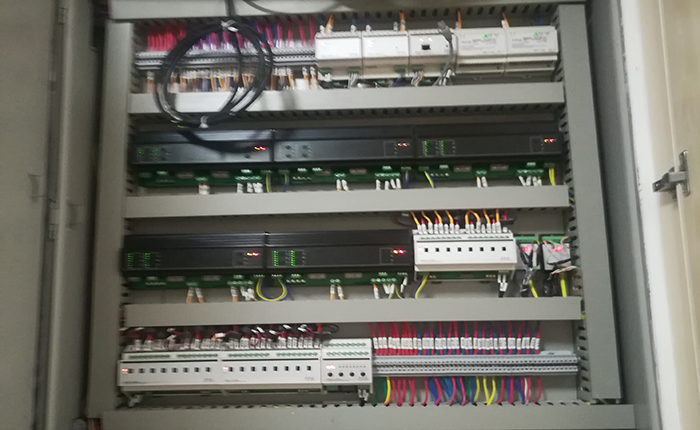

System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 8 CH 16A relay switch module, 8 CH 20A relay switch module, 2 CH 10A Thyristor Dimming Module, Bus coupler, 7 Inch Smart Touch Screen, and 6-Button Smart Switch Panel.

Control Methods

A bus-type intelligent lighting control system enables localized control via smart 6-key wall switch, alongside centralized management through the 7 Inch Smart Touch Screen.

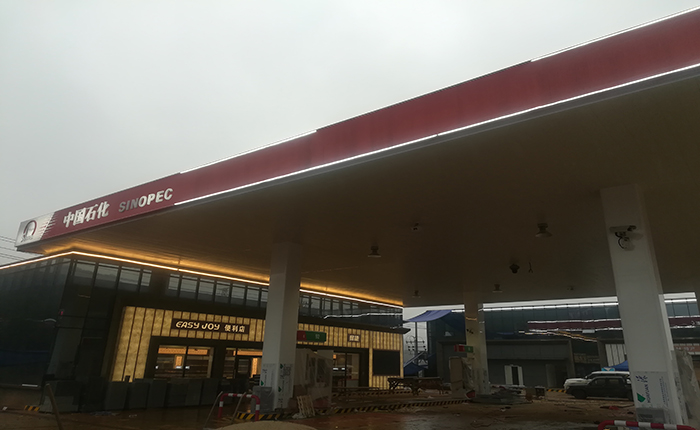

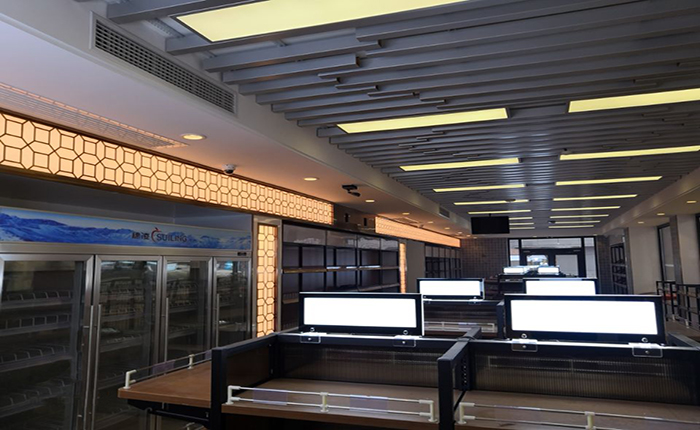

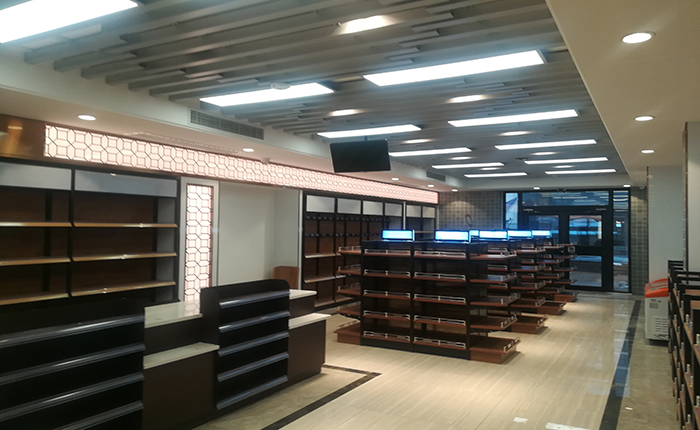

Performance Outcome

The smart 6-key wall switchs are used to achieve on/off control, scheduled control, and scene control of lighting circuits across different areas of the gas station. Meanwhile, centralized lighting management is achieved via a 7-inch smart touch screen positioned at the cashier counter. The EASYCTRL intelligent lighting control system, developed by Easyctrl Intelligent, enables efficient management of the gas station's lighting system, reducing labor costs, enhancing operational efficiency, and significantly cutting energy consumption.

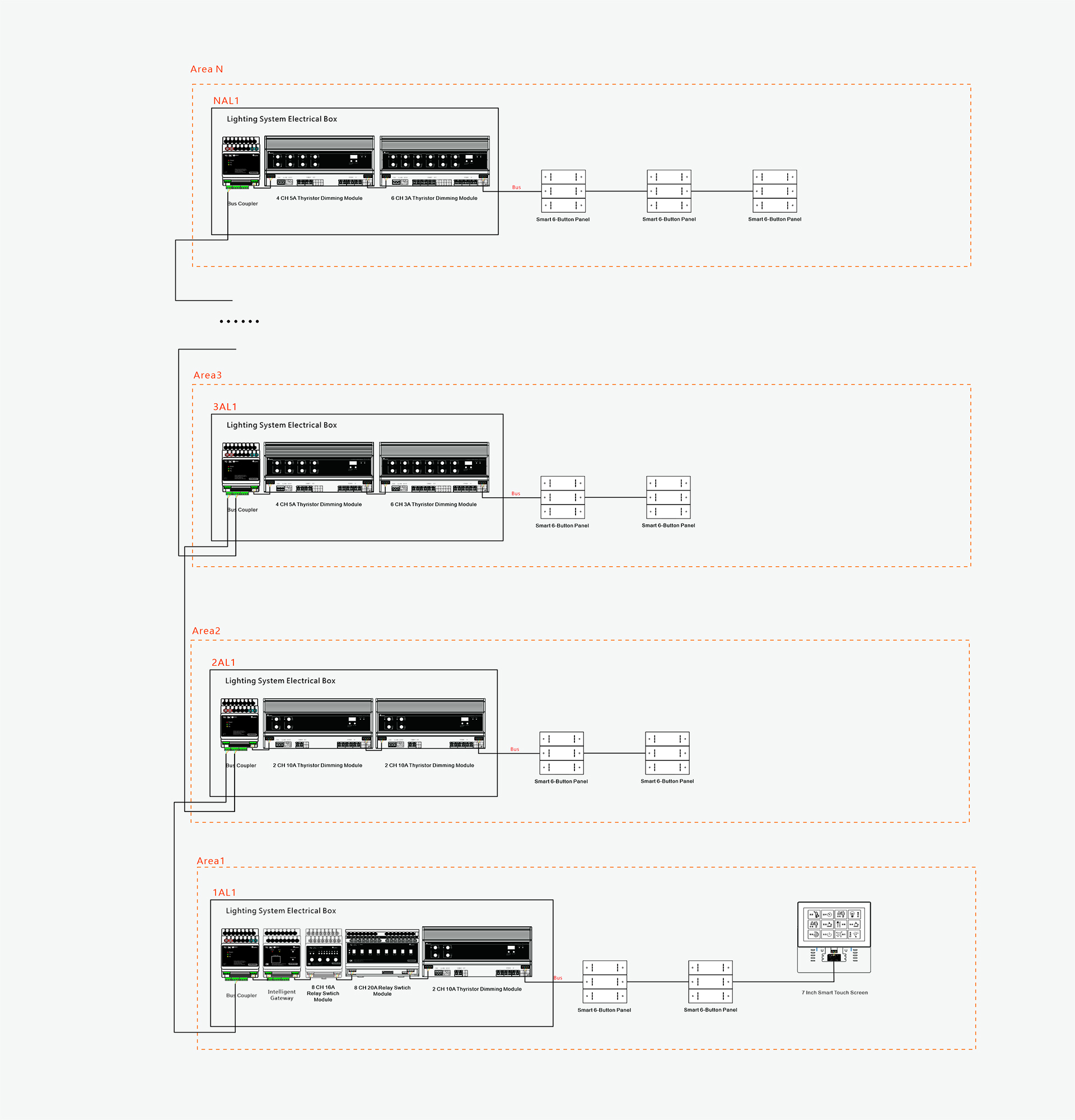

System Architecture Diagram
