Exhibiton hall smart lighting control system

Project case for Smart Lighting Control System

Home Projects Comprehensive Project

The Cultural Exhibition Hall of Zhongshan Research Institute, Changchun University of Science and Technology Smart Lighting System Project

/upload/images/article/20250701/17513555908297598.jpg

Project information

Control Equipment

Dimmable Lights: LED light strips;

Non-dimmable Lights:exhibition hall's lighting fixtures.

Control Areas

Different exhibition areas in the exhibition hall.

Control Requirements

1.Perform on/off control of some non-dimmable lighting circuits;

2.Utilize thyristor dimming modules to achieve brightness adjustment control for LED light strip circuits in the exhibition hall;

3.Install multiple 8-key smart switch panels in each area to support individual circuit control and scene-based lighting control;

4.Enable zoned lighting control;

5.Enable timed control and scene control;

6.Centralized control via PC and pad.

Control Solution

System products

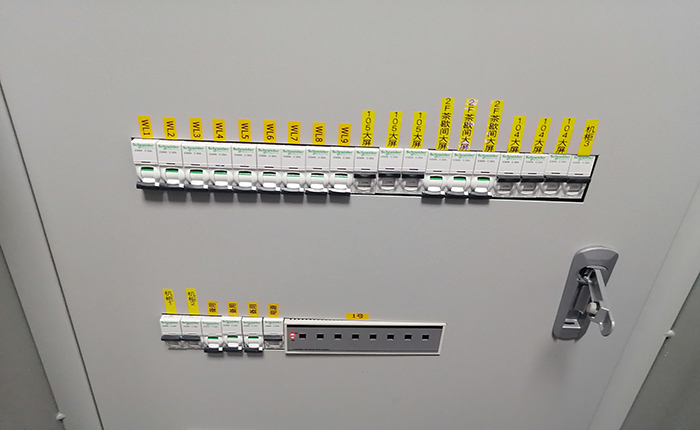

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, Bus coupler, 8 CH 20A Relay Switch Module, 2 CH 10A Thyristor Dimming Module, and Smart 8-key wall switch.

Control Methods

A bus-type intelligent lighting control system supports localized control through 8-key smart wall switches, while enabling centralized management via PC workstations and a pad (customizable interfaces).

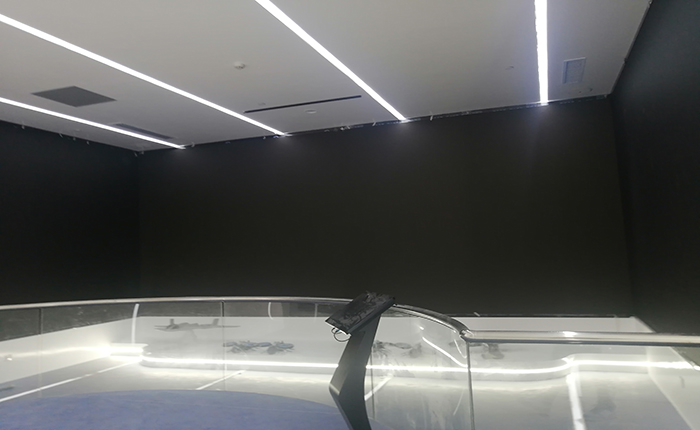

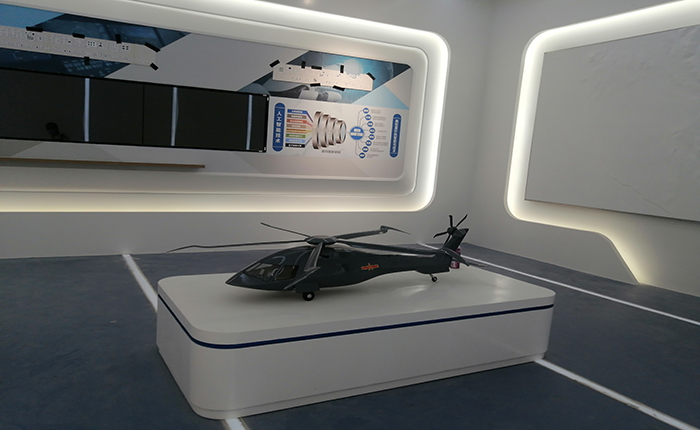

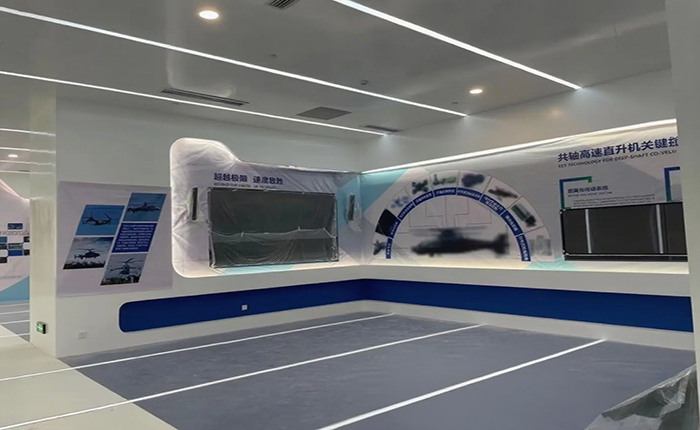

Performance Outcome

The smart 8-key wall switchs are used to achieve on/off control, dimming control,scheduled control, and scene control of lighting circuits across different areas of the exhibition hall. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the exhibition hall's lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste.

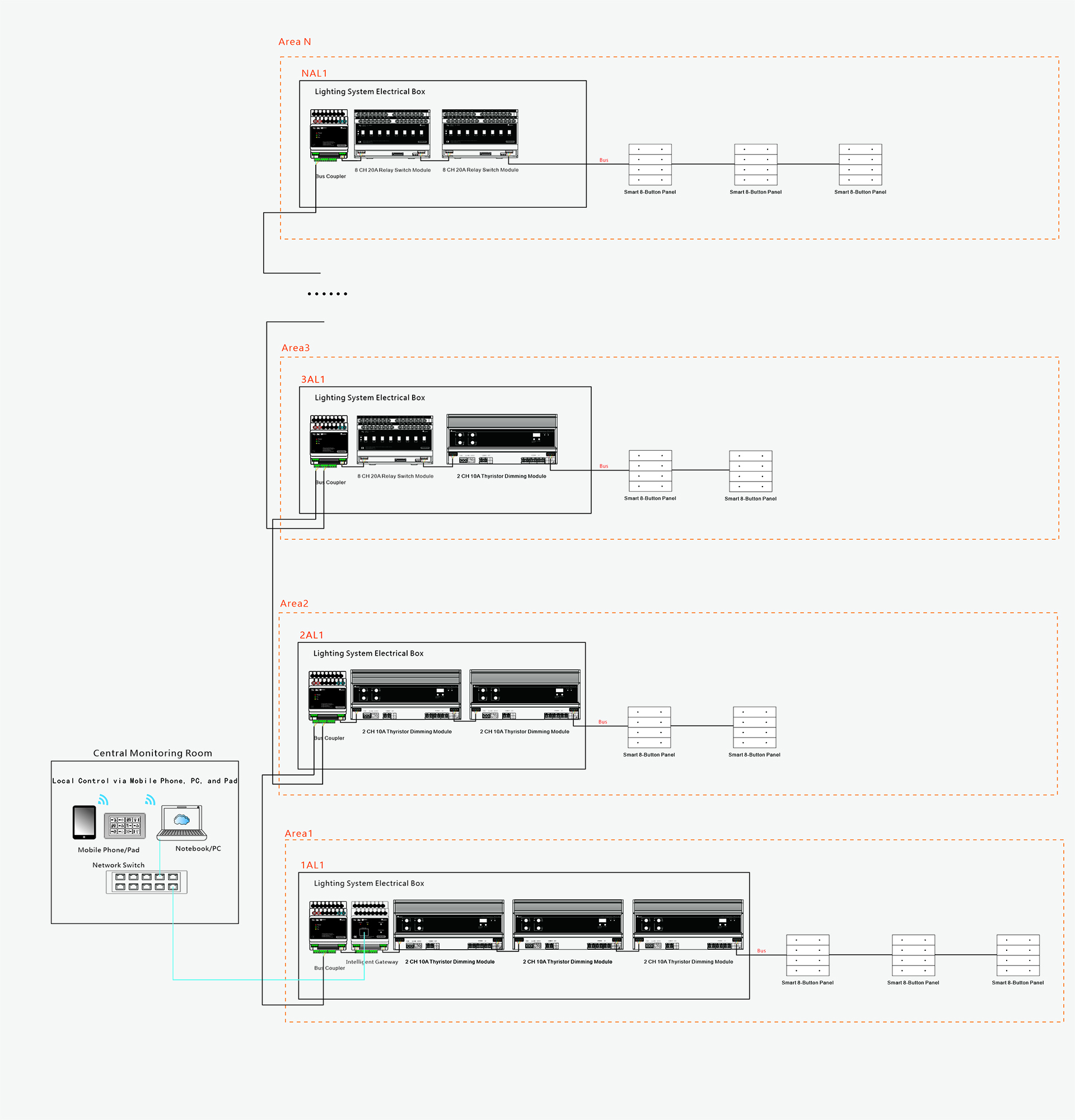

System Architecture Diagram

系统图 1920x2000.jpg
